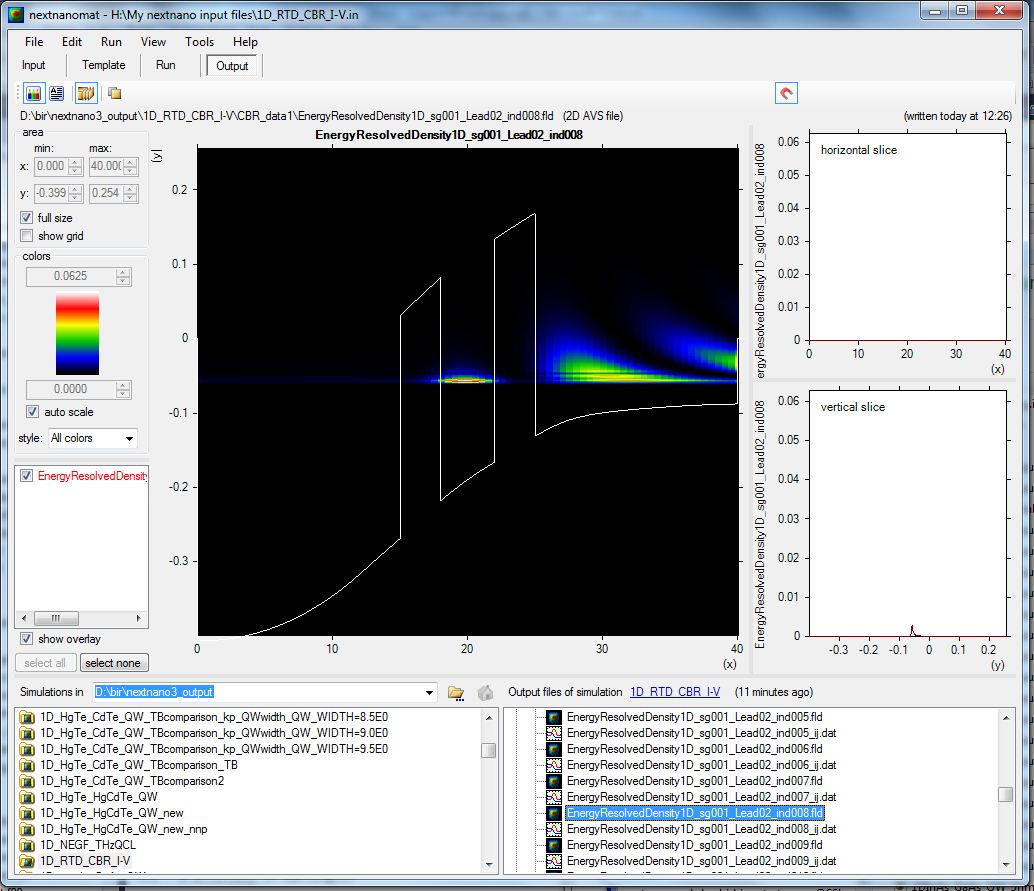

nextnanomat screenshot RTD


Front End & Workflow Manager

nextnanomat is a GUI (graphical user interface) for editing input files (ASCII, XML), organizing simulations and submitting jobs (directly or via a batch list), as well as visualizing simulation results. Parallel job execution is supported on multi-core CPUs automatically. Cloud computing (on-premise or in the cloud) is supported via the free HTCondor software.


You can find the online documentation of nextnanomat here.

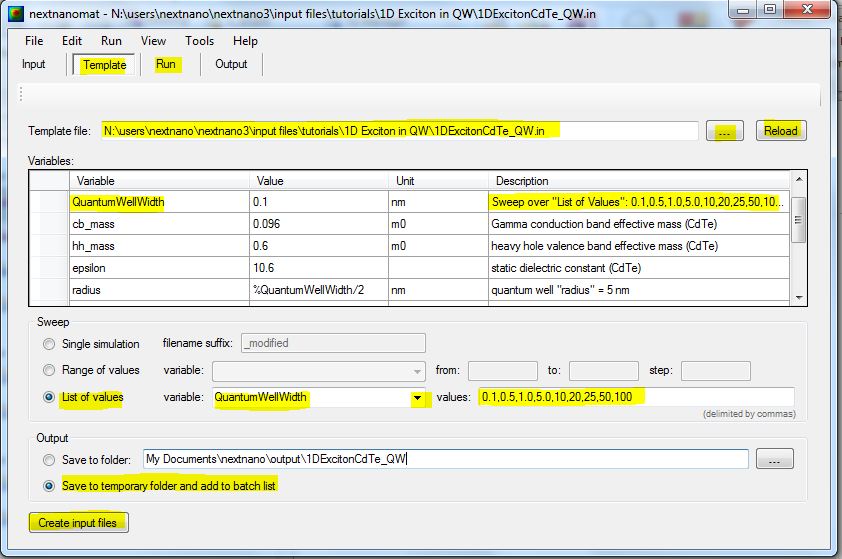

nextnanomat screenshot Template


nextnanomat is customized to work with the following software:

  • nextnano++
  • nextnano³
  • nextnano.NEGF
  • nextnano.MSB

However, it is general enough to be adjusted to any TCAD or scientific software that reads in an ASCII file, passes this ASCII file to an executable, and visualizes its 1D, 2D and 3D results. Even nextnanomat's cloud computing feature will work.

nextnanomat can be used as a visualization software for 1D, 2D and 3D results (e.g. somewhat “similar” (but much simpler) than Origin, gnuplot, Compaq Array Viewer, Intel Array Viewer).
The focus lies on quick visualization rather than on professional editing of graphs.

Visualization features:

  • 1D data: x, fi(x)
  • 2D data: AVS/Express and VTK format, Aij format
  • 3D data: AVS/Express and VTK format (i.e. 2D slices through 3D data)
  • 1D slices through 2D data (incl. export)

Please submit feature requests to support [at]

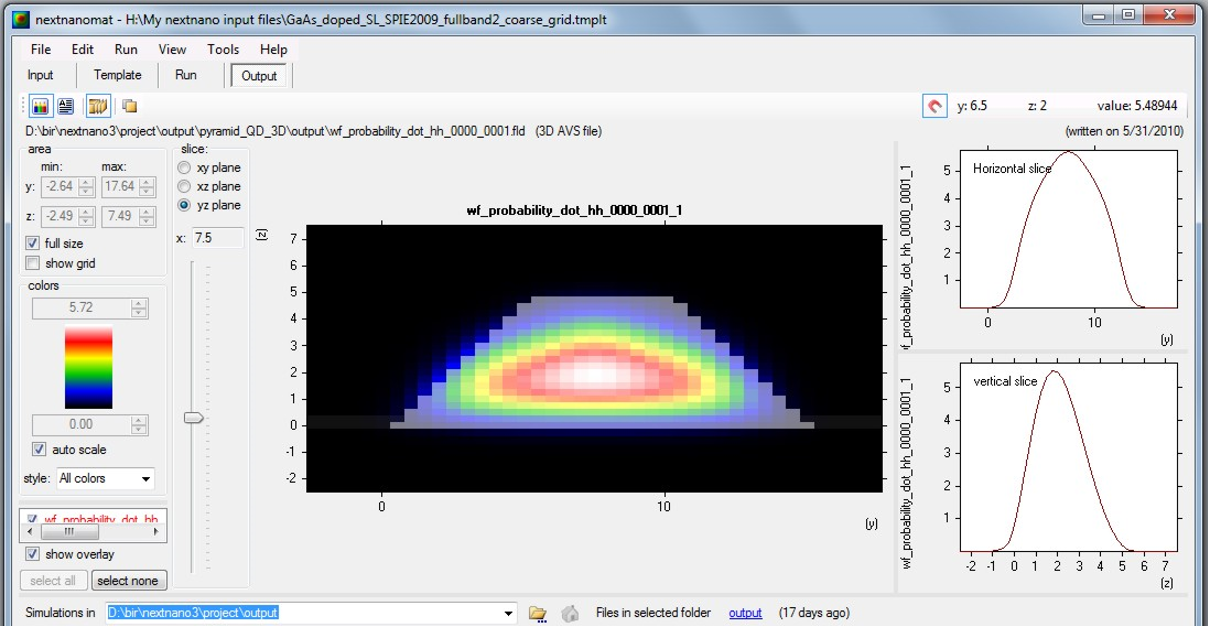

nextnanomat screenshot Quantum dot


Instructions: No installation is required, just unzip the file, run it and set under 'Tools' ==> 'Options' the path to your nextnano++ and nextnano³ executables.

  1. nextnanomat - latest version (automatic build)

    If you do not know which version to download, choose the 64-bit version with installer.

    ==> 64-bit (with installer, Windows .msi file) <==



    64-bit (without installer, zip file)



    32-bit (without installer, zip file)



  2. nextnanomat - Version 2022-06-02


On our Download website you can find even more versions of nextnanomat.
